Newly developed GaN based MEMS resonator operates stably even at high temperature

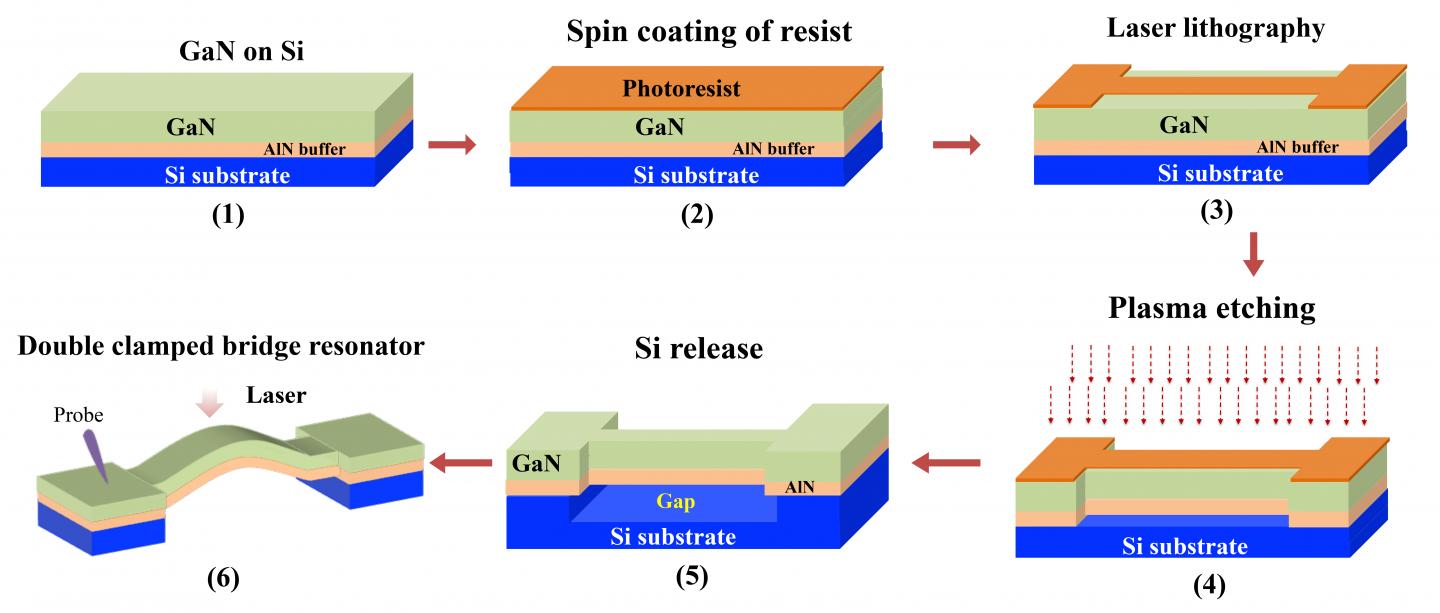

image: The device processing for the double-clamped GaN bridge resonator on Si substrate:
(1) The as-grown GaN epitaxial film on Si substrate. Except for the AlN buffer layer, no strain removal layer is used.
(2) Spin coating of the photoresist on the GaN-on-Si sample.
(3) Laser lithography to define the pattern for the double clamped bridge configuration.
(4) Plasma etching to remove the GaN layer without photoresist.
(5) Chemical etching to release Si under the GaN layer. Therefore, the air gap is formed.
(6) The final device structure of the double clamped bridge resonator. We use the laser doppler method to measure the frequency shift and resolution under different temperatures.

Image:
Liwen Sang

Liwen Sang, independent scientist at International Center for Materials Nanoarchitectonics, National Institute for Materials Science (also JST PRESTO researcher) developed a MEMS resonator that stably operates even under high temperatures by regulating the strain caused by the heat from gallium nitride (GaN).

High-precision synchronization is required for the fifth generation mobile communication system (5G) with a high speed and large capacity. To that end, a high-performance frequency reference oscillator which can balance the temporal stability and temporal resolution is necessary as a timing device to generate signals on a fixed cycle. The conventional quartz resonator as the oscillator has the poor integration capability and its application is limited. Although a micro-electromechanical system (MEMS) (*1) resonator can achieve a high temporal resolution with small phase noise and superior integration capability, the silicon (Si)-based MEMS suffers from a bad stability at higher temperatures.

In the present study, a high-quality GaN epitaxial film was fabricated on a Si substrate using metal organic chemical vapor deposition (MOCVD)(*2) to fabricate the GaN resonator. The strain engineering was proposed to improve the temporal performance. The strain was achieved through utilizing the lattice mismatch and thermal mismatch between GaN and Si substrate. Therefore, GaN was directly grown on Si without any strain-removal layer. By optimizing the temperature decrease method during MOCVD growth, there was no crack observed on GaN and its crystalline quality is comparable to that obtained by the conventional method of using a superlattice strain-removal layer.

The developed GaN-based MEMS resonator was verified to operate stably even at 600K. It showed a high temporal resolution and good temporal stability with little frequency shift when the temperature was increased. This is because the internal thermal strain compensated the frequency shift and reduce the energy dissipation. Since the device is small, highly sensitive and can be integrated with CMOS technology, it is promising for the application to 5G communication, IoT timing device, on-vehicle applications, and advanced driver assistance system.
