Microlensing: Nature's magnifying glass reveals intermediate mass exoplanets

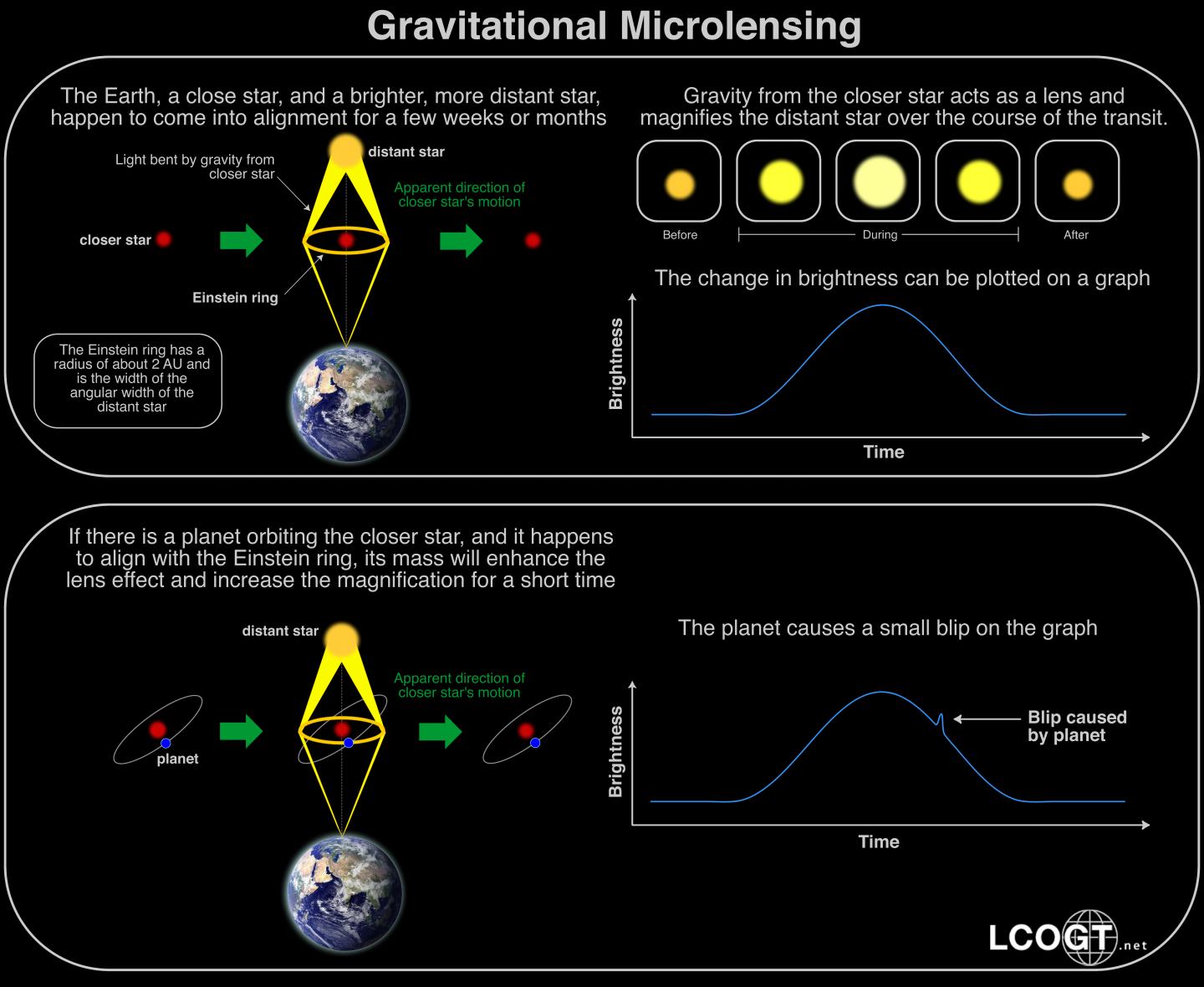

image: Planet OGLE-2012-BLG-0950Lb was detected through gravitational microlensing, a phenomenon that acts as nature's magnifying glass.

Image:
LCO/D. BENNETT

Maunakea, Hawaii - Astronomers have found a new exoplanet that could alter the standing theory of planet formation. With a mass that's between that of Neptune and Saturn, and its location beyond the "snow line" of its host star, an alien world of this scale was supposed to be rare.

Aparna Bhattacharya, a postdoctoral researcher from the University of Maryland and NASA's Goddard Space Flight Center (GSFC), led the team that made the discovery, which was announced today during a press conference at the 233rd Meeting of the American Astronomical Society in Seattle.

Using the Near-Infrared Camera, second generation (NIRC2) instrument on the 10-meter Keck II telescope of the W. M. Keck Observatory on Maunakea, Hawaii and the Wide Field Camera 3 (WFC3) instrument on the Hubble Space Telescope, the researchers took simultaneous high-resolution images of the exoplanet, named OGLE-2012-BLG-0950Lb, allowing them to determine its mass.

"We were surprised to see the mass come out right in the middle of the predicted intermediate giant planet mass gap," said Bhattacharya. "It's like finding an oasis in the middle of the exoplanet desert!"

"I was very pleased with how quickly Aparna completed the analysis," said co-author David Bennett, a senior research scientist at the University of Maryland and GSFC. "She had to develop some new methods to analyze this data - a type of analysis that had never been done before."

In an uncanny timing of events, another team of astronomers (which included Bhattacharya and Bennett) published a statistical analysis at almost the same time showing that such sub-Saturn mass planets are not rare after all.

"We were just finishing up the analysis when the mass measurements of OGLE-2012- BLG-0950Lb came in," said lead author Daisuke Suzuki of Japan's Institute of Space and Astronautical Science. "This planet confirmed our interpretation of the statistical study."

The teams' results on OGLE-2012-BLG-0950Lb are published in the December issue of The Astronomical Journal and the statistical study was published in the December 20th issue of the Astrophysical Journal Letters.

OGLE-2012-BLG-0950Lb was among the sub-Saturn planets in the statistical study; all were detected through microlensing, the only method currently sensitive enough to detect planets with less than Saturn's mass in Jupiter-like orbits.

Microlensing leverages a consequence of Einstein's theory of general relativity: the bending and magnification of light near a massive object like a star, producing a natural lens on the sky. In the case of OGLE-2012-BLG-0950Lb, the light from a distant background star was magnified by OGLE-2012-BLG-0950L (the exoplanet's host star) over the course of two months as it passed close to perfect alignment in the sky with the background star.

By carefully analyzing the light during the alignment, an unexpected dimming with a duration of about a day was observed, revealing the presence of OGLE-2012-BLG-0950Lb via its own influence on the lensing.

METHODOLOGY

OGLE-2012-BLG-0950Lb was first detected by the microlensing survey telescopes of the Optical Gravitational Lensing Experiment (OGLE) and the Microlensing Observations in Astrophysics (MOA) collaborations.

Bhattacharya's team then conducted follow-up observations using Keck Observatory's powerful adaptive optics system in combination with NIRC2.

"The Keck observations allowed us to determine that the sub-Saturn or super-Neptune size planet has a mass of 39 times that of the Earth, and that its host star is 0.58 times the mass of the Sun," said Bennett. "They measured the separation of the foreground planetary system from the background star. This allowed us to work out the complete geometry of the microlensing event. Without this data, we only knew the star-planet mass ratio, not the individual masses."

For the statistical study, Suzuki's team and MOA analyzed the properties of 30 sub-Saturn planets found by microlensing and compared them to predictions from the core accretion theory.

CHALLENGING THE THEORY

What is unique about the microlensing method is its sensitivity to sub-Saturn planets like OGLE-2012-BLG-0950Lb that orbit beyond the "snow line" of their host stars.

The snow line, or frost line, is the distance in a young solar system, (a.k.a. a protoplanetary disk) at which it is cold enough for water to condense into ice. At and beyond the snow line there is a dramatic increase in the amount of solid material needed for planet formation. According to the core accretion theory, the solids are thought to build up into planetary cores first through chemical and then gravitational processes.

"A key process of the core accretion theory is called "runaway gas accretion," said Bennett. "Giant planets are thought to start their formation process by collecting a core mass of about 10 times the Earth mass in rock and ice. At this stage, a slow accretion of hydrogen and helium gas begins until the mass has doubled. Then, the accretion of hydrogen and helium is expected to speed up exponentially in this runaway gas accretion process. This process stops when the supply is exhausted. If the supply of gas is stopped before runaway accretion stops, we get "failed Jupiter" planets with masses of 10-20 Earth-masses (like Neptune)."

The runaway gas accretion scenario of the core accretion theory predicts that planets like OGLE-2012- BLG-0950Lb are expected to be rare. At 39 times the mass of the Earth, planets this size are thought to be continuing through a stage of rapid growth, ending in a much more massive planet. This new result suggests that the runaway growth scenario may need revision.

Suzuki's team compared the distribution of planet-star mass ratios found by microlensing to distributions predicted by the core accretion theory.

They found that the core accretion theory's runaway gas accretion process predicts about 10 times fewer intermediate mass giant planets like OGLE-2012- BLG-0950Lb than are seen in the microlensing results.

This discrepancy implies that gas giant formation may involve processes that have been overlooked by existing core accretion models, or that the planet forming environment varies considerably as a function of host star mass.

NEXT STEPS

This discovery has not only called into question an established theory, it was made using a new technique that will be a key part of NASA's next big planet finding mission, the Wide Field Infra-Red Survey Telescope (WFIRST), which is scheduled to launch into orbit in the mid-2020s.

"This is exactly the method that WFIRST will use to measure the masses of the planets that it discovers with its exoplanet microlensing survey. Until WFIRST comes online, we need to develop this method with observations from our Keck Key Strategic Mission Support (KSMS) program as well as observations from Hubble," said Bennett.

"It's very exciting to see Keck and Hubble combine forces to provide this surprising new result," said Keck Observatory Chief Scientist John O'Meara. "And it's equally exciting to know that we can make these kind of advances today to help facilitate the best science from WFIRST and Keck's partnership in the future."

The NASA Keck KSMS program will continue to make follow-up observations of microlensing events detected by telescopes on the ground and in space.
