Magnetic memory states go exponential

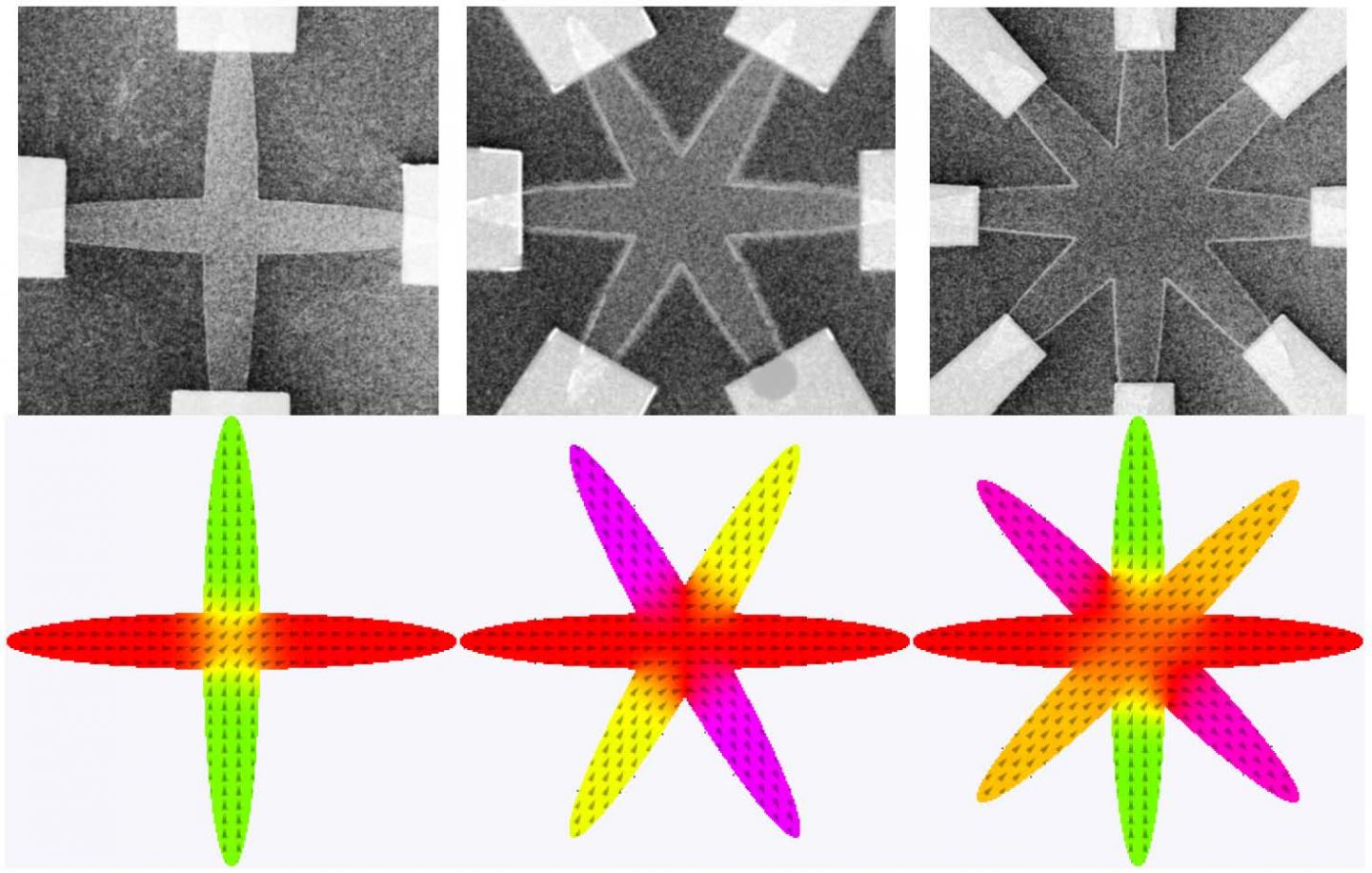

image: Researchers from Bar-Ilan University have shown that relatively simple magnetic thin film structures of N crossing ellipses can support two to the power of 2N magnetic states - much greater than previously thought - and demonstrated switching between the states with spin currents. The ability to stabilize and control exponential number of discrete magnetic states in a relatively simple structure constitutes a major contribution to spintronics and may pave the way to multi-level magnetic memory with extremely large number of states per cell, be used for neuromorphic computing, and more. The image shows examples of simulated magnetic states supported by the structures, and pictures of the devices themselves that were taken with a scanning electron microscope.

Image:
Shubhankar Das, Ariel Zaig, Moty Schultz and Lior Klein

Spintronics is a thriving branch of nano-electronics which utilizes the spin of the electron and its associated magnetic moment in addition to the electron charge used in traditional electronics. The main current practical contributions of spintronics are in magnetic sensing and non-volatile magnetic data storage, and additional breakthroughs in developing magnetic based processing and novel types of magnetic memory are expected.

Spintronics devices commonly consist of magnetic elements manipulated by spin-polarized currents between stable magnetic states. When spintronic devices are used for storing data, the number of stable states sets an upper limit on memory capacity. While current commercial magnetic memory cells have two stable magnetic states corresponding to two memory states, there are clear advantages to increasing this number, as it will potentially allow increasing the memory density and enable the design of novel types of memory.

Now, a group of researchers led by Prof. Lior Klein, from the physics department and the Institute of Nanotechnology and Advanced Materials at Bar-Ilan University, has shown that relatively simple structures can support exponential number of magnetic states - much greater than previously thought. The studied structures are magnetic thin films patterned in the form of N crossing ellipses which have two to the power of 2N magnetization states. Furthermore, the researchers demonstrated switching between the states by generating spin currents. Their research appears as a featured article on the cover of a June issue of Applied Physics Letters.

The ability to stabilize and control exponential number of discrete magnetic states in a relatively simple structure constitutes a major contribution to spintronics. "This finding may pave the way to multi-level magnetic memory with extremely large number of states per cell (e.g., 256 states when N=4), be used for neuromorphic computing, and more," says Prof. Klein, whose research group includes Dr. Shubhankar Das, Ariel Zaig, and Dr. Moty Schultz.

Credit:
Bar-Ilan University
