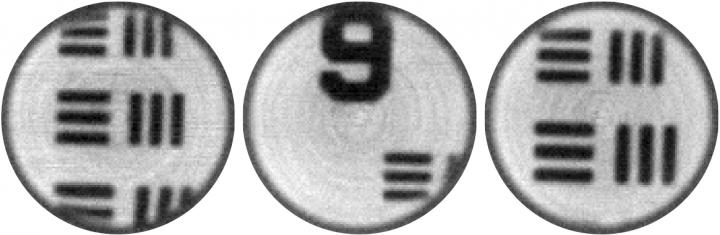

image: Once the key to unscrambling the images has been measured, it is possible to image through the optical fiber -- turning it into an ultra-thin endoscope. Shown are some experimentally measured images of a resolution target. Each image is one twentieth of a millimeter wide (about the same width as a strand of hair).
Scientists have developed a new technique that could revolutionise medical imaging procedures using light.
A team of physicists, led by Dr David Phillips from the University of Exeter, have pioneered a new way in which to control light that has been scrambled by passage through a single hair-thin strand of optical fibre. These ultra-thin fibres hold much promise for the next generation of medical endoscopes - enabling high-resolution imaging deep inside the body at the tip of a needle.
Conventional endoscopes are millimetres wide and have limited resolution - so cannot be used to inspect individual cells. Single optical fibres are approximately 10x narrower and can enable much higher-resolution imaging - enough to examine the features of individual cells directly inside living tissue. It is normally only possible to view cells once they have been taken outside the body and placed in a microscope.
The catch is that we can't directly look through optical fibres, as they scramble the light sent through them. This problem can be solved by first calibrating an optical fibre to understand how it blurs images, and then using this calibration information as a key to decipher images from the scrambled light. Earlier this year, Dr Phillips' group developed a way to measure this key extremely rapidly, in collaboration with researchers from Boston University in the USA, and the Liebniz Institute of Photonic Technologies in Germany [paper: Compressively sampling the optical transmission matrix of a multimode fibre, published in Light: Science and Applications, April 21st 2021].
However, the measured key is very fragile, and easily changes if the fibre bends or twists, rendering deployment of this technology in real clinical settings currently very challenging. To overcome this problem, the Exeter based team have now developed a new way to keep track of how the image unscrambling key changes while the fibre is in use. This provides a way to maintain high resolution imaging even as a single fibre based micro-endoscope flexes. The researchers achieved this by borrowing a concept used in astronomy to see through atmospheric turbulence and applying it to look through optical fibres. The method relies on a 'guide-star' - which in their case is a small brightly fluorescing particle on the end of the fibre. Light from the guide-star encodes how the key changes when the fibre bends, thus ensuring imaging is not disrupted.
This is a key advance for the development of flexible ultra-thin endoscopes. Such imaging devices could be used to guide biopsy needles to the right place, and help identify diseased cells within the body.
Dr Phillips, an Associate Professor in the Physics and Astronomy department at the University of Exeter, said: "We hope that our work brings the visualisation of sub-cellular processes deep inside the body a step closer to reality - and helps to translate this technology from the lab to the clinic."
The latest work is in collaboration with researchers at the Liebniz Institute of Photonic Technologies in Germany, and the Brno Insititute of Scientific Instruments in the Czech Republic. The project was made possible with funding from the Royal Academy of Engineering and the Royal Society in the UK, the European Research Council, and the Chinese Scholarship Council.
Memory effect assisted imaging through multimode optical fibres is published in Nature Communications on Friday, June 18th 2021
