Looking at fossils of long-dead creatures, it's easy to understand how anthropologists determine the way an animal looked. But how do they determine how one moved?
Alan Walker,Professor of Anthropology and Biology at Penn State University, and a team of researchers studied 91 separate primate species, including all taxonomic families. The study also included 119 additional species, most of which are mammals ranging in size from mouse to elephant, that habitually move in diverse ways in varied environments.
Their goal was to document the relationship of the dimensions of the semicircular canals to locomotion. These structures are filled with a fluid, which moves within the canals when the animal moves. The fluid's movement is sensed by special cells that send signals to the brain, triggering the neck and eye muscles to reflexively keep the visual image stable.

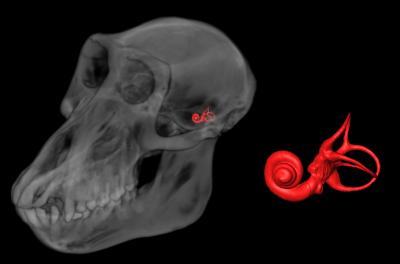

A computer reconstruction of an adult female baboon skull from high-resolution X-ray computed tomography (CT) slices. The skull is rendered transparent to show the position of the three semicircular canals and cochlea of left inner ear filled in red. The enlargement of the canals and cochlea is five times the size of the canals shown in the skull. Each canal is approximately 5 mm in diameter. Credit: Alan Walker lab, Penn State
The basic hypothesis of the project was that the organ of balance -- which helps stabilize an animal's gaze and coordinate its movements as it travels through the environment -- should be irrevocably linked to the type of locomotion produced by its limbs. "If an animal evolves a new way of moving about the world, its organ of balance must evolve accordingly," Walker explains. From the visual information, the animal tracks its position relative to stationary objects such as tree trunks, branches, rocks or cliffs, or the ground. Having a stable image of the environment is especially crucial for acrobatic animals that leap, glide, or fly.
To make the discovery, the scientists scanned skull samples of each species, measuring the size of each semicircular canal and calculating the radius of curvature. Most of the specimens were scanned at the Center for Quantitative Imaging at Penn State on the OMNI-X high-resolution x-ray CT scanner, which can resolve features approximately 1/100 the size of those detected by medical CT scanners. In addition, experienced field workers used personal knowledge or film of animals in the wild to classify species into one of six locomotor categories ranging from very slow and deliberate to fast and agile. The scientists then compared the canal size of each species to its category of movement.

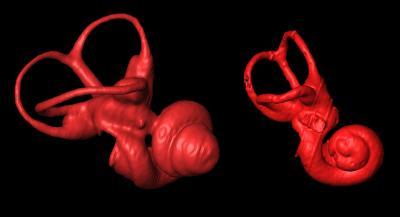

Primates with fast, agile locomotion have large semicircular canals. Here the computer reconstruction of the three semicircular canals and cochlea on the left is that of an active, leaping tarsier with a body mass of 123g. The reconstruction on the right is that of the extinct lemur Palaeopropithecus that has a body mass of 45,000g. This animal has been reconstructed to have behavior like that of a living sloth suspending itself from the trees and moving extremely slowly. The semicircular canals and cochlea of these animals are shown here corrected for their body size. Credit: Alan Walker lab, Penn State
The results revealed a highly significant statistical relationship between the radius of curvature of the semicircular canals and the species' habitual way of moving. More acrobatic species consistently have semicircular canals with a larger radius of curvature than do slower-moving ones. For example, a small, fast-moving leaper like a bushbaby has semicircular canals that are relatively and absolutely much bigger than those of the similar-sized, slow-moving loris. However, because larger animals have absolutely larger canals, the analysis had to take body size into account. The research revealed that this functional tie between the semicircular canals and locomotor pattern is evident both within the primates alone and within the entire mammalian sample.
"How an animal moves is a basic adaptation," says Walker, an expert in primate locomotion. "Now we have a way to reconstruct how extinct species moved that is completely independent of analysis of the limb structure. For the first time, we can test our previous conclusions using a new source of information."

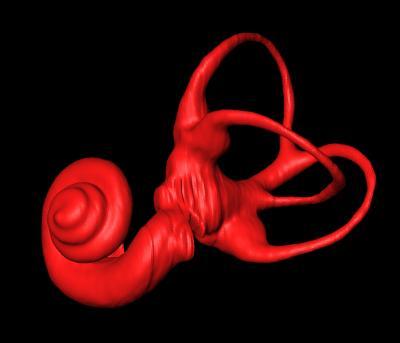

A computer reconstruction of the three semicircular canals and cochlea from the inner ear of an adult baboon. Credit: Alan Walker lab, Penn State
Co-leader of the team was Fred Spoor, Professor of Anatomy at University College, London. Spoor originally studied a small number of species for his doctoral research and suggested conducting a detailed investigation using modern techniques. Other researchers on the project were Professor of Biology Theodore Garland Jr. of the University of California, Riverside; Senior Instructional Design Consultant Gail Krovitz, of the eCollege company; Research Associate in Anthropology Timothy M. Ryan of Penn State University; and Associate Professor of Anthropology Mary T. Silcox of the University of Winnipeg in Canada.
Source: Penn State
