Pulsars are the compact remnants from explosions of massive stars. Some of them spin around their own axis hundreds of times per second, emitting beams of radiation into space. Until now, they could only be found through their pulsed radio emissions. Now, scientists at the Max Planck Institute for Gravitational Physics (Albert Einstein Institute/AEI) in Hanover assisted by the Max Planck Institute for Radio Astronomy have discovered a millisecond pulsar solely via its pulsed gamma radiation. A new data analysis method developed by the AEI was crucial for the success. The pulsar is accompanied by an unusual sub-stellar partner, which it is vaporizing, hence the name "black widow".
Back in 1994, astronomers discovered a source of strong gamma-rays in the constel-lation of Centaurus. They suspected that a pulsar was the origin of the energetic radiation. Now, a team of scientists led by Holger Pletsch from the Max Planck Institute for Gravitational Physics (Albert Einstein Institute, AEI) has solved the mystery and identified the culprit: the millisecond gamma-ray pulsar PSR J1311-3430. The developement of a new data analysis method by the AEI scientists enabled the discovery, since rapidly spinning pulsars are extremely difficult to find.

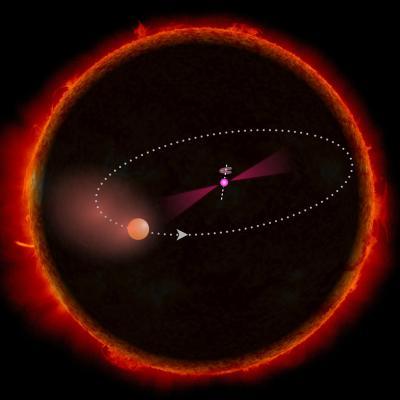

The unusual PSR J1311-3430 pulsar system with the first millisecond pulsar discovered solely by its lighthouse-like gamma-ray emissions (magenta). The record-breaking pulsar system is so compact that it would fit completely inside our Sun. This schematic representation shows the Sun, the companion's orbit, and the companion at its maximum possible size true to scale; the pulsar has been greatly enlarged in contrast.
(Photo Credit: SDO/AIA (sun), AEI)
To unambiguously identify a gamma-ray pulsar, astronomers must know its properties to very high precision. This includes its position, spin frequency, and how the latter changes over time. If the pulsar is in a binary system, the analysis problem is even more complicated: at least three additional orbital parameters have to be determined as well.
In the case of PSR J1311-3430 astronomers had already observed the companion, which is heated by the radiation from the pulsar, with optical telescopes. They were thus able to partially constrain the orbital parameters and confine the position of the pulsar.
"We developed a particularly efficient method to search the data from NASA's Fermi satellite for gamma-ray millisecond pulsars, including those in binary systems. Only this method enabled us to probe the wide parameter ranges," says Holger Pletsch, lead author of the article published in Science. The new analysis method enables scientists to conduct a 'blind search' for gamma-ray millisecond pulsars for the first time – right up to very high spinning frequencies.

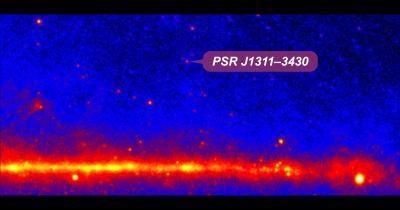

A map of the gamma-ray sky as seen by the Large Area Telescope on board NASAs Fermi satellite over the course of four years. The color coding from blue via red to yellow displays the intensity of the detected gamma radiation from a sector of the sky measuring 200 by 100 Moon diameters in galactic coordinates. The gamma radiation from the plane of the Milky Way can be seen as a horizontal band. The newly discovered radio pulsar J1311-3430 can be clearly seen as a strong gamma-ray source.
(Photo Credit: AEI)
The scientists analysed the Fermi data on the Atlas computer cluster at the AEI. "Our search used data collected by the gamma-ray satellite over a total of four years. Very soon after we started running the analysis, a clear signal showed up in the results. What we saw was very exciting," says Pletsch.
PSR J1311-3430 spins 390 times per second, emitting gamma-ray photons into space in the form of a beam, similar to a lighthouse. In roughly one in a million revo-lutions of the pulsar, a single photon reaches the detector on board Fermi.
The gamma-ray signal also reveals much about the companion to the astronomers: the orbital motion of the binary system modulates the photon arrival times, yielding information about the partner star. "The companion object is small and unusually dense," says AEI Director Bruce Allen. "It is at least eight times as massive as the planet Jupiter, but has at most 60 percent the planet's radius."
From this information, the researchers calculated the density of the companion, which turned out to be unusually high; it is around 30 times as dense as the Sun. Presumably, the small companion is the compact remnant of a star which has been orbiting the pulsar since earlier times. Over time, the pulsar accreted matter from the star, thereby accelerating its rotation. Pulsar and companion moved closer and closer together.
"At present, the remaining stellar core, which presumably consists mainly of helium, is heated by the radiation from the pulsar and literally evaporated," says Holger Pletsch. Astronomers call this type of pulsar a 'black widow', in analogy with a spe-cies of spider which kills the smaller male after mating. In the distant future, PSR J1311-4330 might possibly completely vaporize its companion and from then on trav-el through space alone.
And that's not all: "Our discovery is not only a first, it also sets several new records," explains Bruce Allen. Currently, the odd couple is orbiting its common centre of mass on an almost perfect circular trajectory in only 93 minutes. This is the shortest known orbital period of all pulsars in binary systems.
At a distance of only 1.4 Earth-Moon separations, the binary system is the closest one known to date with a pulsar. The pulsar is speeding along its circular orbit with at least 13,000 kilometres per hour. Its light-weight companion is even faster, at up to 2.8 million kilometres per hour.
Holger Pletsch and his colleagues also had a close look at older observations with the Green Bank radio telescope in West Virginia, but were unable to find the fast pulsar here. "Apparently, the cloud of vaporized material from the companion absorbs most of the radio wave emissions from the pulsar and possibly makes it invisible to radio telescopes," says Lucas Guillemot from the Max Planck Institute for Radio Astronomy in Bonn, co-author of the publication. The scientists are already planning further observations at higher radio frequencies. They hope to use them to accurately determine the object's distance from Earth, for example.
Systems like this provide astronomers with new insights into the evolution of very close binary systems, which are as yet still incompletely understood. PSR J1311-3430 could also shed new light on the generation of the gamma-ray photons and radio emissions in the strong magnetic field of pulsars. The pulsar may just be the tip of the iceberg: many other unidentified gamma-ray sources may harbour similarly unusual systems. Thirty years after the discovery of the first millisecond pulsar in the radio range, the novel analysis method of the Max Planck researchers at the AEI has opened a new door to the easier identification of these elusive celestial objects.
This computer graphic shows the structure of NASAs Fermi satellite. The central, box-shaped instrumentation platform lies between the solar panels. The Large Area Telescope, whose data the astronomers evaluated, is hidden beneath the black cover visible on the top.
(Photo Credit: NASA)
Source: Max-Planck-Gesellschaft
