The Barnett Shale is a geological formation in North Texas bearing a large amount of natural gas that was difficult to recover prior to recent technological advances such as hydraulic fracturing. The formation lies beneath Dallas and Fort Worth and extends over several counties, mostly to the west of those cities. Development of the Barnett Shale and other unconventional plays such as the Bakken Shale in North Dakota and the Marcellus Shale in Pennsylvania, New York and West Virginia have spurred dramatic growth in domestic natural gas production.
This study comes as some policy makers and members of the public are expressing concern about possible environmental and health impacts of hydraulic fracturing. Most earthquakes identified in the study ranged in magnitude from 1.5 to 2.5, meaning they posed no danger to the public.
"I didn't find any higher risks from disposal of hydraulic fracturing fluids than was thought before," says Frohlich. "My study found more small quakes, nearly all less than magnitude 3.0, but just more of the smaller ones than were previously known. The risk is all from big quakes, which don't seem to occur here."
All the wells nearest to the eight earthquake groups reported high injection rates (maximum monthly injection rates exceeding 150,000 barrels of water). Yet in many other areas where wells had similarly high injection rates, there were no earthquakes. Frohlich tried to address those differences.

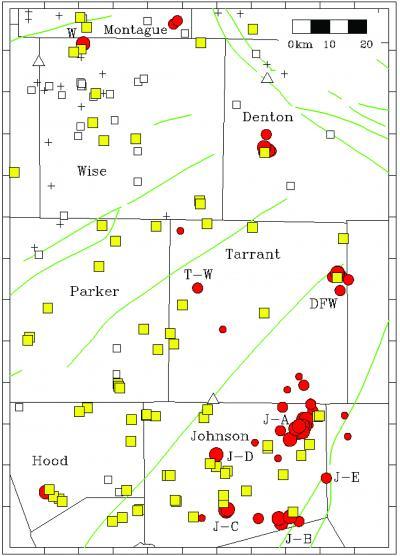

This is a map showing earthquake epicenters determined in this study (red circles), injection wells (squares and + symbols) in use since October 2006, seismograph stations (white triangles), and mapped faults (green lines. Circle sizes indicate quality of epicentral location, with large, medium and small sizes indicating qualities A, B, and C. For injection wells, yellow squares are wells with maximum monthly injection rates exceeding 150,000 barrels of water per month (BWPM); white squares, exceeding 15,000 BWPM; + symbols, exceeding 1,500 BWPM.
(Photo Credit: Cliff Frohlich/U. of Texas at Austin.)
"It might be that an injection can only trigger an earthquake if injected fluids reach and relieve friction on a nearby fault that is already ready to slip," says Frohlich. "That just isn't the situation in many places."
Hydraulic fracturing is an industrial process in which water and various chemicals are pumped deep underground in order to fracture rock, allowing oil or gas to more easily flow to a well. As petroleum is produced at the surface, most hydraulic fracturing fluids return to the surface too. Frohlich is careful to point out that he did not evaluate the possible correlation of earthquakes with the actual hydraulic fracturing process, but rather the impacts of disposing of fracturing fluids and other wastes in these injection wells.

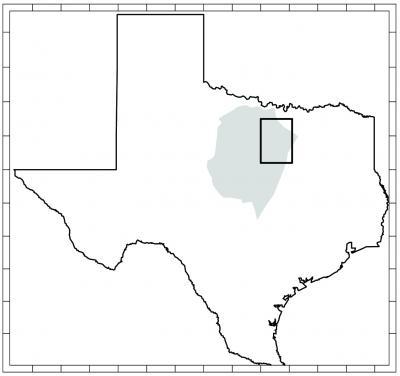

This is a Texas map showing the Barnett Shale (gray) and rectangle indicating region featured in accompanying map of earthquakes and injection wells.
(Photo Credit: Cliff Frohlich/U. of Texas at Austin.)

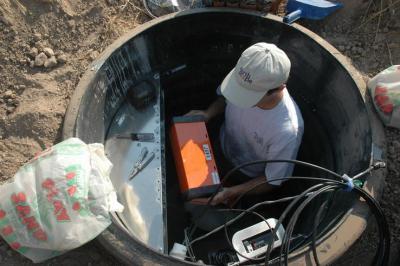

An engineer installs equipment in the vault of an EarthScope seismic station near Newdale, Idaho.
(Photo Credit: Perle Dorr/IRIS Consortium)
Source: University of Texas at Austin
